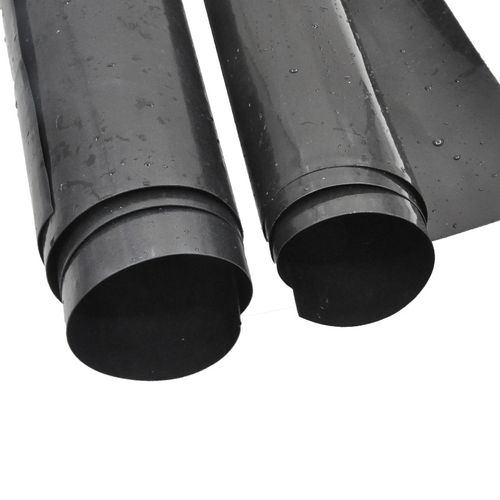

High Density Leakproof Geomembrane

HDPE geomembrane is produced by three-layer co-blowing process or calendering process. It is an effective waterproof barrier engineering material.

1. Excellent anti-penetration performance, waterproof, anti-seepage and isolation

2.High chemical corrosion resistance

3. Better impact resistance and wear resistance

Contact Now E-Mail Telephone WhatsApp

Product Details

HDPE geomembrane is a geotechnical material made of high-density polyethylene.

Material: HDPE

Thickness: 0.2-3mm

Width: 1-8m

Length: according to customer needs

Features:

1. HDPE geomembrane has extremely good chemical steadiness and can face up to corrosion from sturdy acids, sturdy alkali and oil. Is a high-strength anti-corrosion material;

2. HDPE geomembrane has specially excessive tensile electrical energy and can meet the necessities of an enormously vary of high-standard projects;

3. HDPE geomembrane has robust nearby climate resistance and anti-aging residences and can be used for a prolonged time barring reducing its perfect performance;

4. HDPE geomembrane has whole each and every day performance. HDPE geomembrane has sturdy tensile power and elongation at break, which approves HDPE geomembrane to be used in some harsh geological and climatic conditions. Adaptable to uneven geological agreement and sturdy stress resistance.

Application:

1. HDPE geomembrane has fantastic overall performance in environmental safety and sanitation: such as landfills, sewage remedy plants, cooling swimming pools of strength and power manufacturing facilities, industrial and scientific safety waste, etc.

2. HDPE geomembrane is suitable for water conservation projects: such as anti-seepage, leakage plugging and reinforcement of rivers, lakes, reservoirs, and dams, waterway anti-seepage, vertical core walls, slope protection, etc.

3. HDPE geomembrane is used in municipal projects: subways, underground engineering of buildings, planting rooftops, roof gardens, sewage pipe anti-seepage, etc.

4. HDPE geomembrane is very suitable for aquaculture: intensive and single breeding ponds, fish ponds, shrimp pond linings, sea cucumber fences, slope protection, etc.

5. Polyethylene anti-seepage membrane is suitable for gardens: artificial lakes, rivers, reservoirs, golf direction bottoms, slope protection, inexperienced lawns, etc.

High Density Leakproof Geomembrane

Specifications:

HDPE Geomembrane Technical Parameter (GRI GM13 ASTM Standard)
Spec Properties	Test method ASTM	GMS0.2	GMS0.5	GMS0.75	GMS1.0	GMS1.25	GMS1.5	GMS2.0	GMS2.5	GMS3.0
Thickness	D5199	0.2mm	0.5mm	0.75mm	1.00mm	1 .25mm	1.50mm	2.00mm	2.50mm	3.00mm
Density (≥ g/cc)	D1505	0.94	0.940	0.940	0.940	0.940	0.940	0.940	0.940	0.94
Tensile Properties (Each direction)(≥) • yield strength • break strength • yield elongation • break elongation	D6693 Type IV	3 kN/m 5 kN/m 12% 700%	8 kN/m 14 kN/m 12% 700%	11 kN/m 20 kN/m 12% 700%	15 kN/m 27 kN/m 12% 700%	18 kN/m 33 kN/m 12% 700%	22 kN/m 40 kN/m 12% 700%	29kN/m 53 KN/m 12% 700%	37kN/m 67kN/m 12% 700%	44kN/m 80kN/m 12% 700%
Tear Resistance (≥)	D 1004	25N	64N	93N	125 N	156N	187N	249 N	311 N	374 N
Puncture Resistance(≥)	D 4833	64N	160N	240N	320 N	400 N	480N	640 N	800 N	960 N
Stress Crack Resistance (≥)	D 5397	500 hr	500 hr	500 hr	500 hr	500 hr	500 hr	500 hr	500 hr	500 hr
Carbon Black Content	D 1603	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%
Carbon Black Dispersion	D 5596	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)
Oxidative Induction Time(OIT)(≥) (a)Standard OIT ——or—— (b)High Pressure OIT	D 3895 D 5885	100min 500min	100 min 500 min	100 min 500 min	100 min 500 min	100 min 500 min	100 min 500 min	100 min 500 min	100 min 500 min	100 min 500 min
