Isolation Reinforced Polyester Filament Geotextile
PET geotextile is made of non-woven technology. The PET fiber is melted, sprayed, high-speed air drift and different processing procedures to shape a community structure, and then processed via warmness setting, compaction, coating and different processes.
PET geotextile is a geotechnical cloth made of polyester fiber.
1. Has excessive tensile energy and true anti-penetration properties
2. Excellent corrosion resistance
3. Has suitable water-resistant overall performance and breathability
PET geotextile is a geotechnical material made of polyester fiber.
Material: PET
Weight: 100-800g
Width: 1-7m
Length: 50-200m (customizable)
Color: white, black, orange, supports custom colors
Features:
1. Corrosion resistance: Polyester geotextile has excellent corrosion resistance and is suitable for engineering use in different environments.
2. Wear resistance: It has high wear resistance and can effectively prolong the service life of geotextile.
3. High tensile strength: Polyester geotextiles have good tensile strength and can withstand large pulling forces.
4. Good stability: good dimensional stability and not easy to deform.
5. Anti-aging: Polyester geotextiles can resist ultraviolet rays, oxidation, and chemical corrosion, and have good anti-aging performance.
Application:
1. Water conservancy projects: used for reinforcement and anti-seepage projects such as river embankments, reservoirs, and dams.
2. Railway engineering: used for the reinforcement and stabilization of railway subgrades, culverts and other projects.
3. Road engineering: used for the reinforcement and anti-seepage of roadbeds, embankments and other projects.

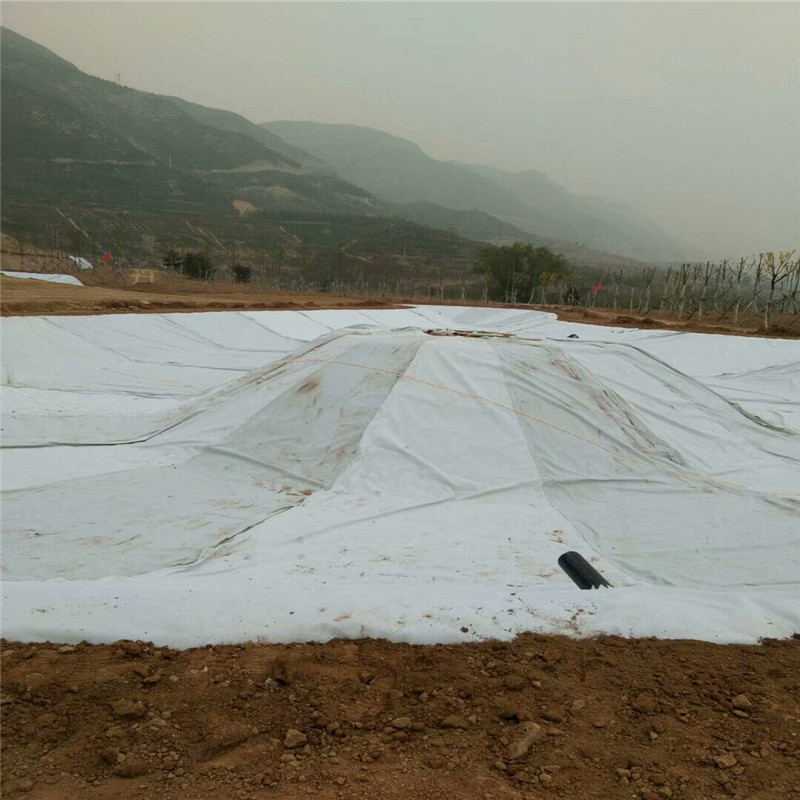

4. Environmental engineering: used for environmental engineering such as covering solid waste landfills and sedimentation tanks of sewage treatment plants.
5. Mining engineering: used for anti-seepage projects in tailings ponds and stockpiles in mines.
6. Agricultural engineering: used for agricultural engineering such as soil and water conservation, irrigation channels, reservoir channels, etc.
Specifications:
Filament Spunbonded Needled Non-woven Geotextile Technical Specifications | ||||||||||
Item | Index | |||||||||
Weight(GSM) | 100 | 150 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | |
Index breaking strength（KN/m） | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | |
1 | Vertical and horizontal rupture strength / (KN/ m) | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
2 | Vertical and horizontal standard strength corresponding to elongation % | 40-80 | ||||||||
3 | CBR bursting strength /KN | 0.8 | 1.6 | 1.9 | 2.9 | 3.9 | 5.3 | 6.4 | 7.9 | 8.5 |
4 | Vertical and horizontal tearing strength /KN | 0.14 | 0.21 | 0.28 | 0.42 | 0.56 | 0.70 | 0.82 | 1.10 | 1.25 |
5 | Equivalent aperture O90(95)>/mm | 0.05-0.20 | ||||||||
6 | Vertical permeability coefficient | K*(10-1～10-3）and K=1.0～9.9 | ||||||||
7 | Thickness / mm≥ | 0.8 | 1.2 | 1.6 | 2.2 | 2.8 | 3.4 | 4.2 | 5.5 | 6.8 |
8 | Width deviation | -0.5 | ||||||||
9 | Unit area mass deviation | -5 | ||||||||
