Soil Reinforcement Non-Woven Geotextile

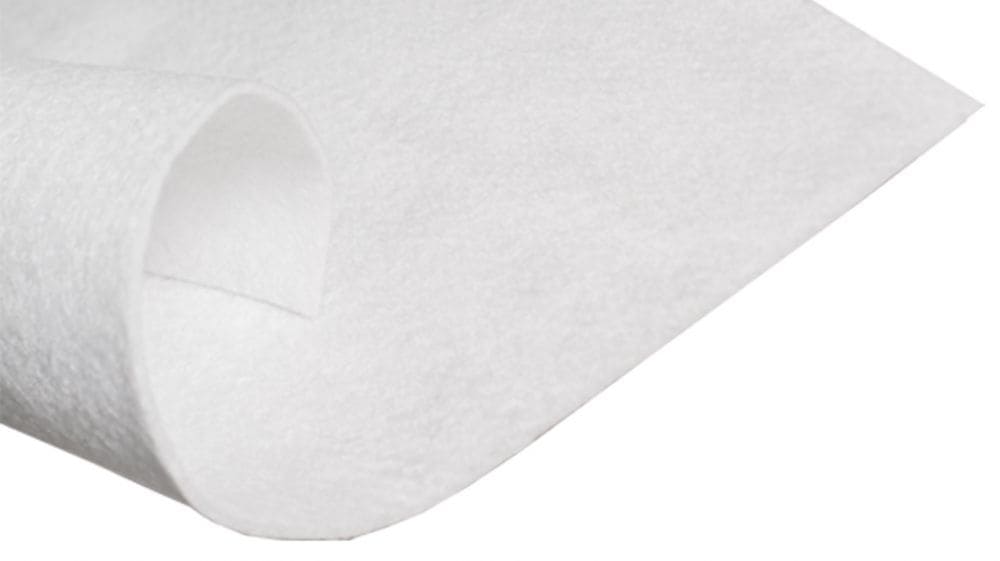

Non-woven geotextiles
Non-woven geotextiles have the advantages of good water permeability, high tensile strength, strong pressure resistance, and resistance to acid and alkali corrosion.
It can be used in soil reinforcement, waterproofing, filtration, isolation, protection and other fields.
Non-woven geotextiles are produced using non-woven technology.PP/PET high-strength non-woven Geotextile for construction
Material: PET/PP
Weight:100-800g
Width: 1-7m
Length: 50-200m (customizable)
Color; white, black, orange, supports custom colors
Non-woven geotextiles have the advantages of simple structure, stable performance, and easy use.
Features:
1、Strong durability: geotextile is made of high-strength artificial fiber, which has fantastic tensile electric powered residences and anti-fatigue properties, and can face up to the anxiety and deformation of the soil for a lengthy time.
2、Good water permeability: the structure of the flooring lets in water to be ignored, maintaining the soil permeable and stopping the accumulation of water vapor and the formation of moisture in the floor.
3, precise shielding performance: geotextile can successfully guard the soil from erosion and corrosion, keep away from soil erosion, preserve the balance and integrity of the soil.
4, adaptable: geotextile can be personalized in accordance to unique soil and engineering requirements, and can be tailored to a large range of environmental rules and loading requirements.
Application:
1. Road engineering: Geotextiles can be used to decorate the basis of roads, highways, and railroads, and can prevent the shrinkage and deformation of roadbeds.
2. Water conservation projects: Geotextiles can be used for slope protection, erosion prevention, soil and water conservation in rivers and dams, and to protection soil from erosion and erosion via water flow.
3. Environmental engineering: Geotextiles can be used as anti-seepage layers in landfills and waste redress plant existence to quit air air air pollution from coming into the soil and groundwater.
4. Aquaculture: Geotextile can be used as the make large backing of aquaculture ponds to make accelerated the steadiness and permeability of the soil and splendor the breeding effect.
5. Landscaping: Geotextiles can be used to enhance courtyards and park lawns, stop lawns from loosening and withered, and decorate water and nutrient penetration.
Specifications:
Filament Spunbonded Needled Non-woven Geotextile Technical Specifications | ||||||||||
Item | Index | |||||||||
Index breaking strength(KN/m) | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | |
1 | Vertical and horizontal rupture strength / (KN/ m) | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
2 | Vertical and horizontal standard strength corresponding to elongation % | 40-80 | ||||||||
3 | CBR bursting strength /KN | 0.8 | 1.6 | 1.9 | 2.9 | 3.9 | 5.3 | 6.4 | 7.9 | 8.5 |
4 | Vertical and horizontal tearing strength /KN | 0.14 | 0.21 | 0.28 | 0.42 | 0.56 | 0.70 | 0.82 | 1.10 | 1.25 |
5 | Equivalent aperture O90(95)>/mm | 0.05-0.20 | ||||||||
6 | Vertical permeability coefficient | K*(10-1~10-3)and K=1.0~9.9 | ||||||||
7 | Thickness / mm≥ | 0.8 | 1.2 | 1.6 | 2.2 | 2.8 | 3.4 | 4.2 | 5.5 | 6.8 |
8 | Width deviation | -0.5 | ||||||||
9 | Unit area mass deviation | -5 |
Packaging:
Stock:
Factory:
FAQ
Q : Are you a factory or trading company?
A : We are a professional manufacturer that specialized in geotextile, geomembrane, composite geomembrane etc with ISO9001 certificate more than 10 years.
Q : Where is your factory located? How can I visit there?
A : Our factory is located in Xinguo Industrial Park, Hutun Town, Feicheng City, Tai'an City, Shandong Province.
Q : Could you send the sample before order confirmation?
A : Yes, we'd love to send a free sample to you for an evaluation if you need.
Q : How about the delivery time?
A : General within 3-7 days after received the deposit.
Q : Can you produce the product according to customers' requirements?
A : Sure, we are professional manufacturer, OEM and ODM are both welcome.
