High weight filter non-woven geotextile
Non-woven geotextiles have the advantages of good water permeability, high tensile strength, strong pressure resistance, and resistance to acid and alkali corrosion.
It can be used in soil reinforcement, waterproofing, filtration, isolation, protection and other fields.
Product descriptions from the supplier
Overview
Non-woven geotextiles are produced using non-woven technology.PP/PET high-strength non-woven Geotextile for construction
Type: non-woven geotextile
Brand: TaiWei
Material: 100% PET/PP
Warranty service: within 5 years
Country of Origin: China
Raw Materials: Polyester Chips/Fibers
Width: 1-7m
Length: 50-200m (customizable)
Weight:100-800gsm
Color：white, black, orange, supports custom colors
After-sales service: online technical support, online installation training, product standard testing, free spare parts, returns and exchanges
1. High strength: Non-woven geotextiles use special production processes and materials to give them excellent tensile strength, rupture resistance and puncture resistance.
2. Good weather resistance: The synthetic textile material used in non-woven geotextile has good weather resistance and can be used for a long time under different climate conditions.
3. Good acid and alkali resistance: Non-woven geotextile can resist the erosion of chemicals such as acids and alkali, ensuring its long-term stability and reliability.
4. Good water permeability and air permeability: The surface of non-woven geotextiles usually has high water permeability and air permeability, which can maintain the circulation of groundwater and soil breathing.
5. Good anti-aging properties: The non-woven geotextile is added with special anti-aging additives, which can resist ultraviolet erosion and extend its service life.

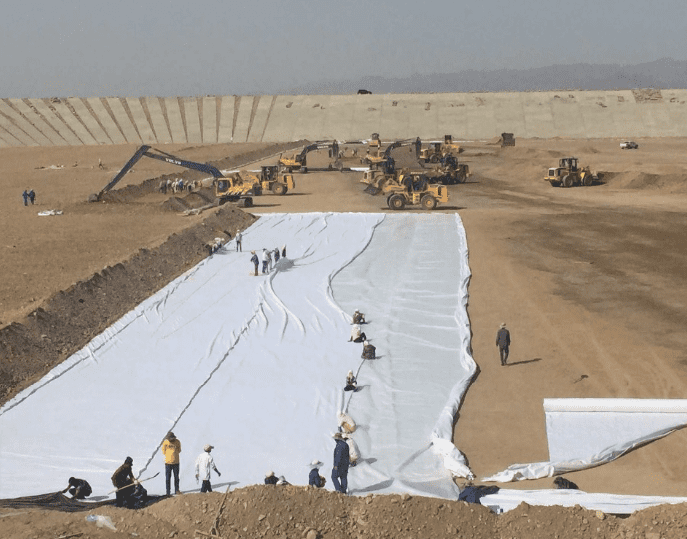

1.Water conservancy projects: Non-woven geotextiles can be used for anti-seepage, anti-leakage, soil conservation and anti-scouring in reservoirs, rivers, dams and other projects.
2.Road engineering: Non-woven geotextiles can be used to reinforce and stabilize roadbeds, reduce the occurrence of road collapse and cracks, and increase the service life of roads.
3.Yard and wharf projects: Non-woven geotextiles can be used for soil conservation, anti-leakage, load-bearing capacity improvement, etc. to increase the efficiency and safety of yard and wharf projects.
4.Environmental engineering: Non-woven geotextiles can be used for anti-penetration and pollution control on the bottom and sides of landfills, waste disposal sites, etc.
Agricultural engineering: Non-woven geotextiles can be used for soil moisture retention and windproof insulation to promote crop growth and increase yields.
、
| Filament Spunbonded Needled Non-woven Geotextile Technical Specifications | ||||||||||
| Item | Index | |||||||||
| Index breaking strength（KN/m） | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | |
| 1 | Vertical and horizontal rupture strength / (KN/ m) | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
| 2 | Vertical and horizontal standard strength corresponding to elongation % | 40-80 | ||||||||
| 3 | CBR bursting strength /KN | 0.8 | 1.6 | 1.9 | 2.9 | 3.9 | 5.3 | 6.4 | 7.9 | 8.5 |
| 4 | Vertical and horizontal tearing strength /KN | 0.14 | 0.21 | 0.28 | 0.42 | 0.56 | 0.70 | 0.82 | 1.10 | 1.25 |
| 5 | Equivalent aperture O90(95)>/mm | 0.05-0.20 | ||||||||
| 6 | Vertical permeability coefficient | K*(10-1～10-3）and K=1.0～9.9 | ||||||||
| 7 | Thickness / mm≥ | 0.8 | 1.2 | 1.6 | 2.2 | 2.8 | 3.4 | 4.2 | 5.5 | 6.8 |
| 8 | Width deviation | -0.5 | ||||||||
| 9 | Unit area mass deviation | -5 | ||||||||
