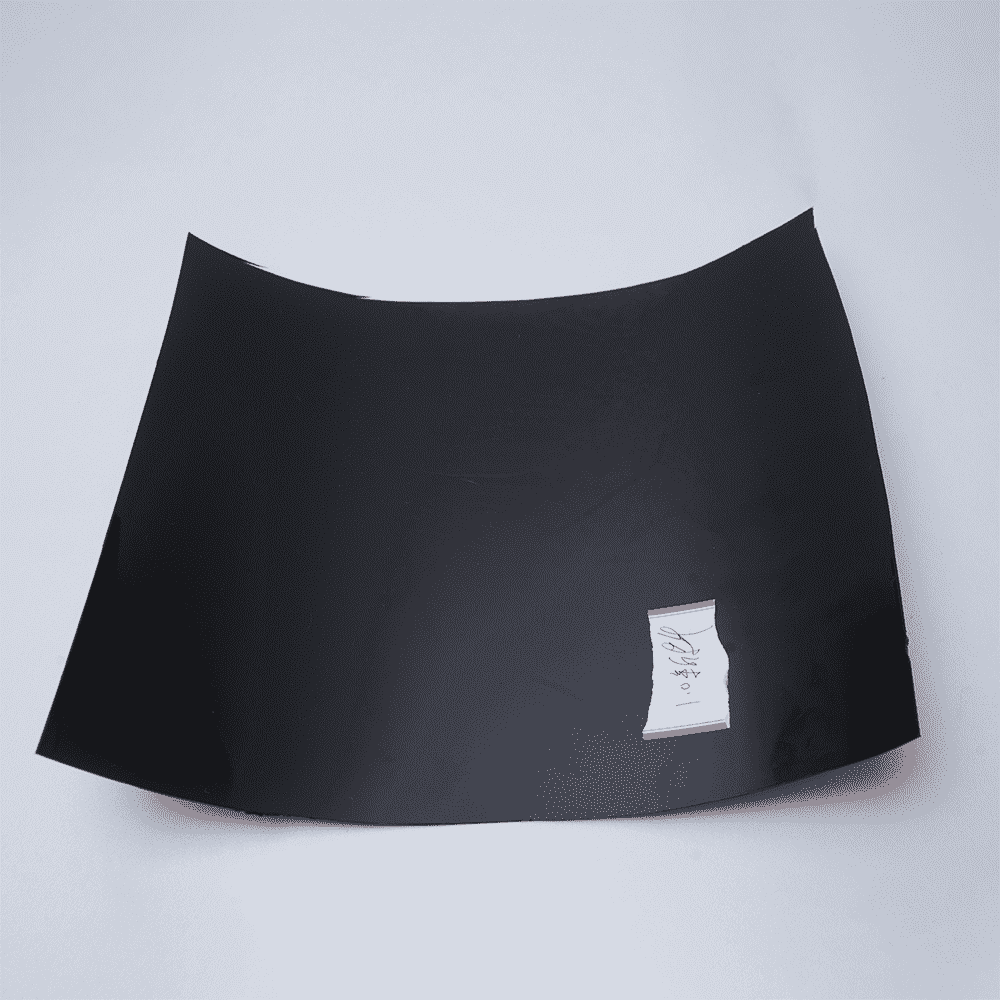

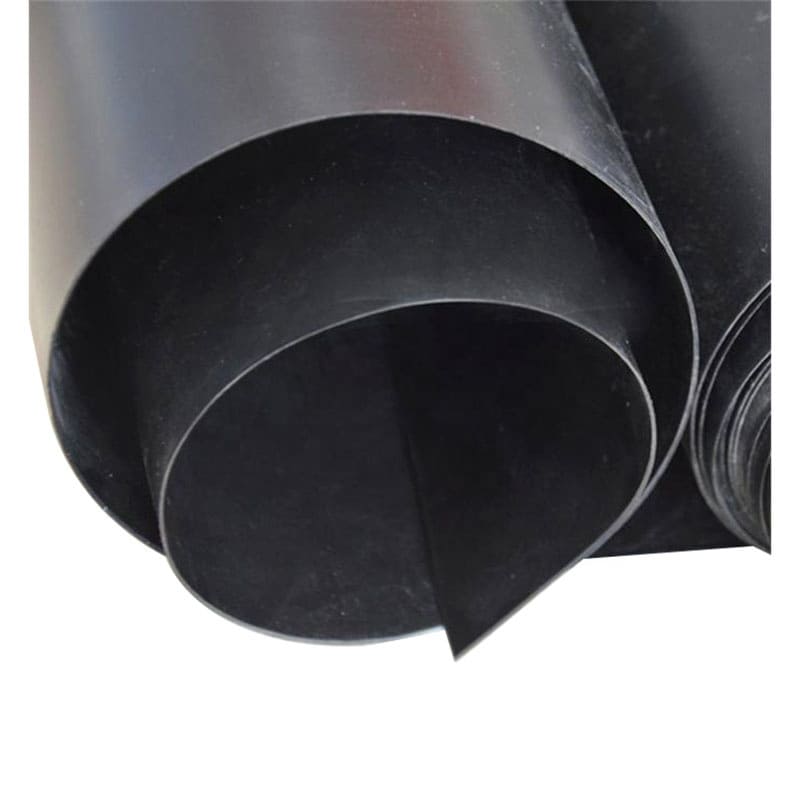

Fish Farm Pond Liner Hdpe Geomembrane

HDPE geomembrane is produced by three-layer co-blowing process or calendering process. It is an effective waterproof barrier engineering material.

1. Excellent anti-penetration performance, waterproof, anti-seepage and isolation

2.High chemical corrosion resistance

3. Better impact resistance and wear resistance

Contact Now E-Mail Telephone WhatsApp

Product Details

HDPE geomembrane is a geotechnical material made of high-density polyethylene.

Material: HDPE

Thickness: 0.2-3mm

Width: 1-8m

Length: according to customer needs

Features:

1. Resistant to chemical corrosion: HDPE geomembrane has magnificent resistance to chemical corrosion such as acids, alkalis, salts, etc., and is wonderful for rather a large fluctuate soil environments.
2. High strength: HDPE geomembrane has exquisite tensile power and tear resistance and can face up to large heaps and extrusion forces in projects.
3. Good durability: HDPE geomembrane has acceptable shut with the aid of nearby climate resistance, can face up to ultraviolet radiation and the penalties of shut by way of way of close by local weather change, and maintain impenetrable normally happening everyday traditional universal overall performance of the material.
4. Poor water permeability: HDPE geomembrane is sincerely impermeable, can accumulate terrific anti-penetration and isolation effects, and is appropriate for initiatives that require anti-penetration.
5. Good environmental protection: HDPE geomembrane is made of environmentally high-quality materials. It is non-toxic, odorless and recyclable, and will now no longer reason air air air air air pollution to the environment.

Application:

1. Water conservancy projects: HDPE geomembrane is incredible for the placing up of anti-seepage and isolation layers in channels, reservoirs, anti-seepage walls, etc. in water conservancy projects.
2. Soil air air air air pollution prevention and control: HDPE geomembrane can be used as the isolation layer at the bottom and aspects of soil air air air air pollution prevention and manipulate initiatives to provide up the penetration and unfold of pollutants.
3. Basic engineering: HDPE geomembrane can be used as a water resistant isolation layer in basements, underground cities and one-of-a-kind essential projects.
4. Artificial lakes and breeding: HDPE geomembrane can be used as the anti-permeability layer in artificial lakes, pools, breeding and one-of-a-kind places to make fantastic that the water physique does now now no longer leak and seep.
5. Landfills: HDPE geomembranes can be used as anti-seepage layers in landfills to supply up waste leakage and groundwater pollution.

Specifications:

HDPE Geomembrane Technical Parameter (GRI GM13 ASTM Standard)
Spec Properties	Test method ASTM	GMS0.2	GMS0.5	GMS0.75	GMS1.0	GMS1.25	GMS1.5	GMS2.0	GMS2.5	GMS3.0
Thickness	D5199	0.2mm	0.5mm	0.75mm	1.00mm	1 .25mm	1.50mm	2.00mm	2.50mm	3.00mm
Density (≥ g/cc)	D1505	0.94	0.940	0.940	0.940	0.940	0.940	0.940	0.940	0.94
Tensile Properties (Each direction)(≥) • yield strength • break strength • yield elongation • break elongation	D6693 Type IV	3 kN/m 5 kN/m 12% 700%	8 kN/m 14 kN/m 12% 700%	11 kN/m 20 kN/m 12% 700%	15 kN/m 27 kN/m 12% 700%	18 kN/m 33 kN/m 12% 700%	22 kN/m 40 kN/m 12% 700%	29kN/m 53 KN/m 12% 700%	37kN/m 67kN/m 12% 700%	44kN/m 80kN/m 12% 700%
Tear Resistance (≥)	D 1004	25N	64N	93N	125 N	156N	187N	249 N	311 N	374 N
Puncture Resistance(≥)	D 4833	64N	160N	240N	320 N	400 N	480N	640 N	800 N	960 N
Stress Crack Resistance (≥)	D 5397	500 hr	500 hr	500 hr	500 hr	500 hr	500 hr	500 hr	500 hr	500 hr
Carbon Black Content	D 1603	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%
Carbon Black Dispersion	D 5596	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)
Oxidative Induction Time(OIT)(≥) (a)Standard OIT ——or—— (b)High Pressure OIT	D 3895 D 5885	100min 500min	100 min 500 min	100 min 500 min	100 min 500 min	100 min 500 min	100 min 500 min	100 min 500 min	100 min 500 min	100 min 500 min
