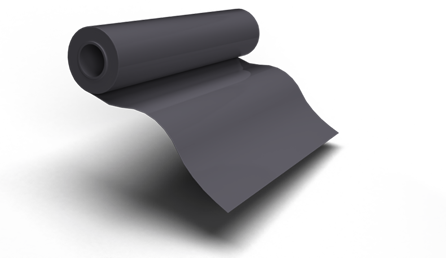

Durable impermeable hdpe geomembrane

HDPE geomembrane is produced by three-layer co-blowing process or calendering process. It is an effective waterproof barrier engineering material.

1. Excellent anti-penetration performance, waterproof, anti-seepage and isolation

2.High chemical corrosion resistance

3. Better impact resistance and wear resistance


  Contact Now E-Mail Telephone WhatsApp
Product Details

Product descriptions from the supplier

Overview

 Type: HDPE Geomembrane

 Brand: TaiWei

 Material: 100% HDPE

 Warranty service: within 10 years

 Country of Origin: China

 Raw Materials: High-density polyethylene

 Width: 1-8m

 Length: 50-200m (customizable)

Thickness: 0.2-3mm

Color:black, white, supports custom colors

After-sales service: online technical support, online installation training, product standard testing, free spare parts, returns and exchanges.


Product Display


Product Features



       1. HDPE geomembrane has notable chemical stability, can stand robust acid, alkali, oil corrosion. It is a high-strength anti-corrosion material;

       2. HDPE geomembrane has special brilliant tensile strength, which can meet the desires of a range of high-standard projects;

       3. HDPE geomembrane has sturdy climate resistance and anti-aging properties, and can be used for a lengthy time except reducing its performance;

       4. HDPE geomembrane has throughout each day performance. HDPE geomembrane has sturdy tensile electricity and elongation at break, which permits HDPE

        geomembrane to be used in some harsh geological and climatic conditions. It is adaptable to uneven geological prerequisites and is resistant to pressure.


Product Application


1. Water conservancy projects: Anti-seepage lining materials used in reservoirs, channels, dams, rivers, etc.

2. Environmental protection: Used as anti-seepage layers in landfills, sewage treatment plants, chemical plants and other places to prevent harmful substances from                      seeping into groundwater or soil. can effectively prevent soil erosion and leakage.

3. Agriculture and fishery: used as anti-seepage layer in pools, fishing ponds, aquaculture farms, etc., which can effectively reduce water waste and improve breeding                    efficiency.

4. Transportation: Used as an anti-seepage layer for highways, railways, airports and other foundation projects to enhance the stability and durability of the foundation.



HDPE Geomembrane Technical Parameter (GRI GM13 ASTM Standard)


Spec Properties

Test
method ASTM

GMS0.2

GMS0.5

GMS0.75

GMS1.0

GMS1.25

GMS1.5

GMS2.0

GMS2.5

  GMS3.0

Thickness

D5199

0.2mm

0.5mm

0.75mm

1.00mm

1 .25mm

1.50mm

2.00mm

2.50mm

 3.00mm

Density (≥ g/cc)

D1505

0.94

0.940

0.940

0.940

0.940

0.940

0.940

0.940

0.94

Tensile Properties
(Each direction)(≥)
•   yield strength
•   break strength
•   yield elongation
•   break elongation

D6693 Type IV

3 kN/m
5 kN/m
12%
700%

8 kN/m   14 kN/m 12%    700%

11 kN/m
20 kN/m
12%
700%

15 kN/m
27 kN/m
12%
700%

18 kN/m
33 kN/m
12%    700%

22 kN/m 40 kN/m 12%    700%

29kN/m 53 KN/m 12%    700%

37kN/m 67kN/m 12%    700%


44kN/m
80kN/m
12%
700%

Tear Resistance (≥)

D 1004

25N

64N

93N

125 N

156N

187N

249 N

311 N

374 N

Puncture Resistance(≥)

D 4833

64N

160N

240N

320 N

400 N

480N

640 N

800 N

960 N

Stress Crack Resistance (≥)

D 5397

500 hr

500 hr

500 hr

500 hr

500 hr

500 hr

500 hr

500 hr

500 hr

Carbon Black Content

D 1603

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

Carbon Black Dispersion

D 5596

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Oxidative Induction Time(OIT)(≥)       (a)Standard OIT                  ——or——
(b)High Pressure OIT

D 3895      D 5885

100min
500min

100 min
500 min

100 min
500 min

100 min
500 min

100 min
500 min

100 min
500 min

100 min
500 min

100 min
500 min

100 min
500 min
