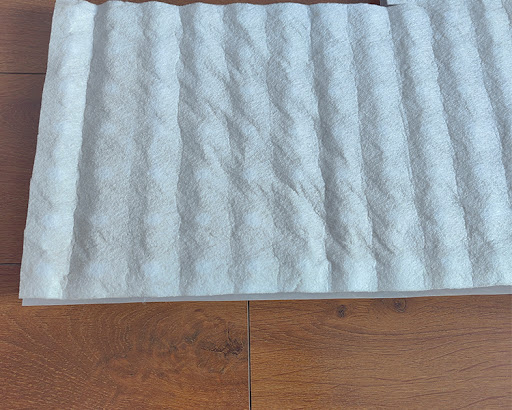

Composite Drainage Board
Composite drainage board is a geosynthetic material made of plastic materials. It has a special structural design that can provide drainage, anti-seepage and protection functions.
Composite drainage board is a geotechnical material used in underground drainage systems.
Material: PP/HDPE
Features:
1. Good drainage performance: The structure of the composite drainage board has a high degree of drainage performance, which can quickly remove excess water on the surface and underground and prevent water accumulation and groundwater level rise.
2. Ensure soil stability: Composite drainage panels can reduce soil saturation through drainage function, improve soil stability, and prevent soil loosening and subsidence.
3. Strong anti-seepage performance: The composite drainage board is made of high-density plastic material, which can effectively block the penetration of moisture and achieve anti-seepage effect.
4. Good pressure resistance: The composite drainage board adopts a special structural design and can withstand large pressure and protect underground pipelines and infrastructure.
5. Environmentally friendly and sustainable: Composite drainage boards are made of recyclable materials, which are environmentally friendly and can achieve sustainable use of resources.
Application:
1. Basement and underground pipeline engineering: It can be used in basements, underground garages, underground pipelines and other projects to provide drainage, anti-seepage and protection functions.
2. Basic engineering: It can be used in the foundation of buildings, the roadbed of highways, tunnels, bridges and other projects to improve soil stability through drainage function.
3. Garden and landscape engineering: It can be used in parks, flower beds, green belts and other landscape projects to provide drainage functions and protect roots and soil.
4. Agricultural and horticultural applications: It can be used in agricultural projects such as farmland and greenhouses to provide soil drainage and moisture retention functions.
Specifications:
| Item | Material | Height(mm) | Compressive Strength (≥KMPa) | Tensile Strength (≥KMPa) | Elongation | Longitudinal Flow Capacity (cm2/s) | Puncture Strength(N) |
| (≥%) | |||||||
| TW8 | HDPE | 8 | 270 | 300 | 25 | 5 | 300 |
| TW10 | HDPE | 10 | 300 | 300 | 25 | 5.6 | 300 |
| TW12 | HDPE | 12 | 300 | 300 | 25 | 5.9 | 300 |
| TW16 | HDPE | 16 | 300 | 300 | 25 | 6.2 | 300 |
| TW20 | HDPE | 20 | 300 | 450 | 40 | 11 | 330 |
| Standard Packaging Roll(Width*Length)(m) | 2m/ 3m * 15m/20m | ||||||
